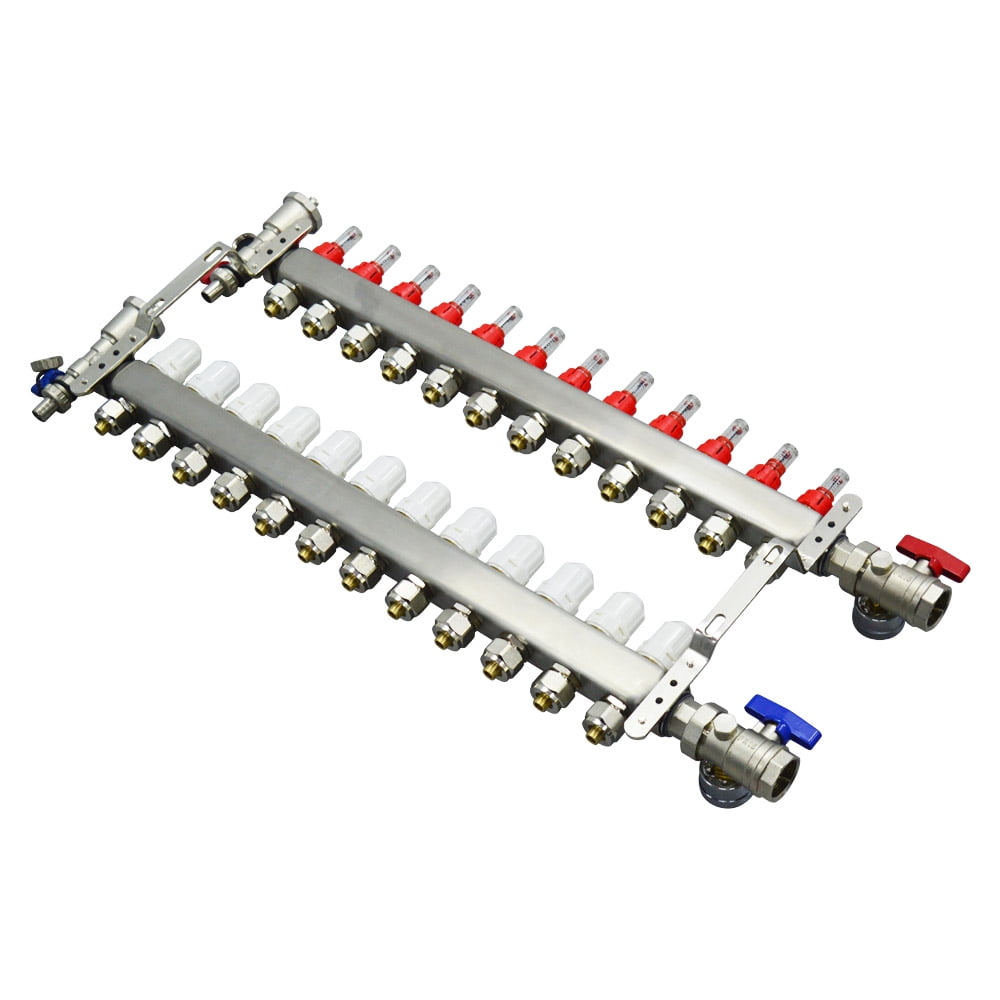

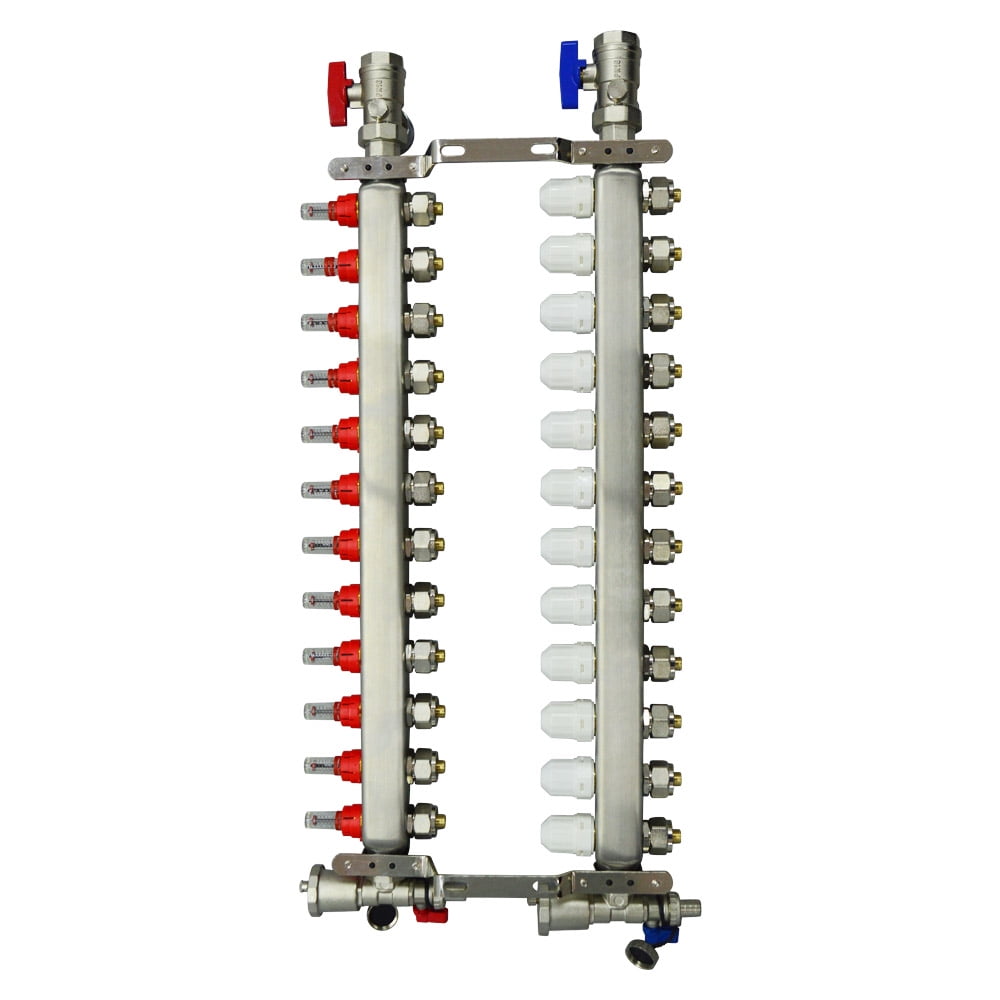

INTSUPERMAI Floor Heating Water Distributor PEX Radiant Floor Heating Manifold Set Stainless Steel (12-Branch)

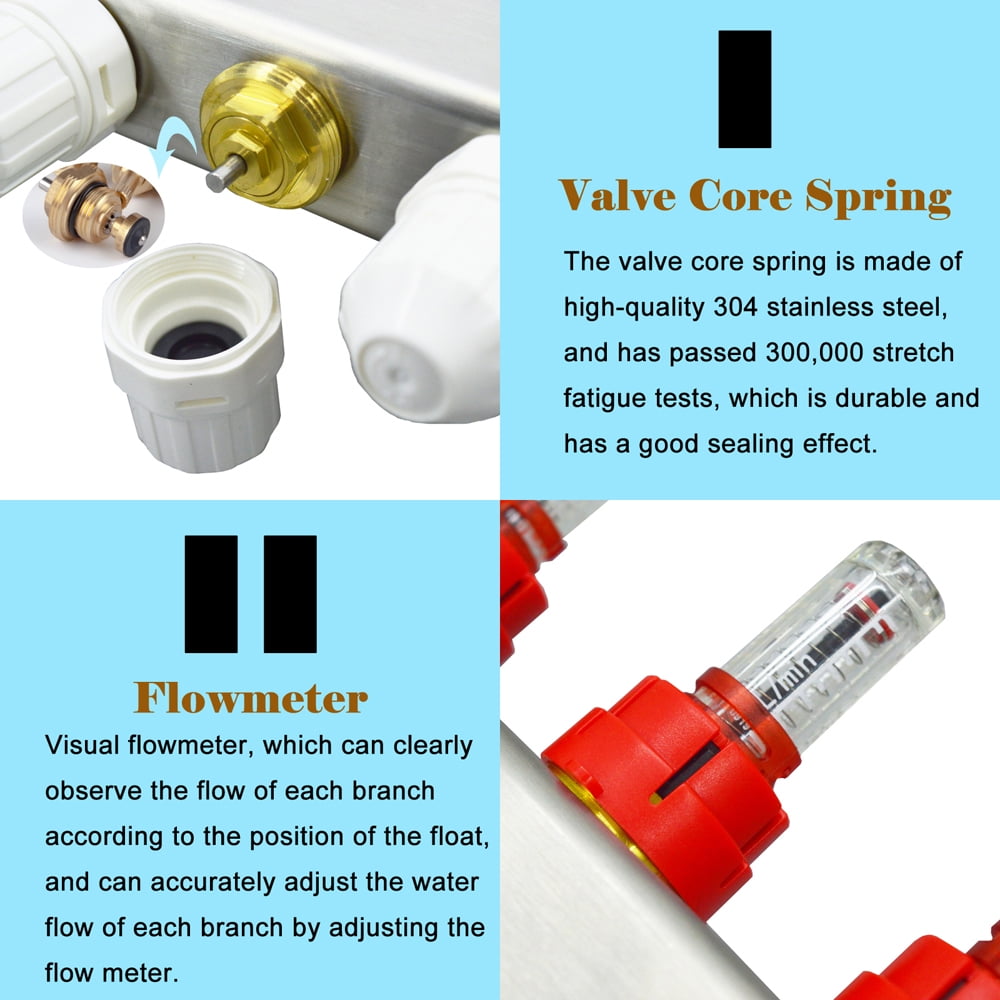

Product Brief： <br>Brief:The floor heating water distributor is a water distribution system used to connect the supply and return water of each heating pipe in the water system. Its function is mainly to pressurize, decompress, stabilize, and shunt. Generally pure copper or stainless steel, resistant to decay. <br>Supervisor material: 304 stainless steel raw material, surface drawing is more durable and smooth, beautiful, high frequency tempering treatment, non-magnetic, restore the original properties of stainless steel, improve the toughness and service life of the material. <br> <br>Features: <br>1. Each part can be replaced separately, with large diameter, sufficient flow, and not easy to block. <br>2. The whole tube body is demagnetized, which will not absorb impurities and extend the service life. <br>3. Observe the size of each water flow, and can adjust the balance, the water grab situation will no longer appear. <br> <br>The number of parameters of the water separator: <br>1. Calculated according to the laying area, it is generally controlled around 15 square meters all the way, not exceeding 19 square meters. <br>2. Calculated according to the length of the pipeline, the length of the one-way control is about 50-75 meters, not more than 90 meters. <br>3. Combine the above two conditions to select the required number of water distributor channels. The m2 number and tube length of the -channel control can be small, but they cannot be exceeded. The above is the usual design algorithm, and it is best for the floor heating construction workers to calculate the required number of water dividers according to the actual house situation. <br>4. The height of the return pipe branch of the water separator is 25-20cm above the ground. <br> <br>Specification: <br>Product Model：MXR/102A Flow temperature control type <br>Material: main 304 stainless steel (chromium &gt; 18% nickel &gt; 8%) copper: 59 brass <br>Main connection thread at both ends: G 1" pipe thread (inner thread) <br>Branch pipe adapter：G 1/2" <br>Spacing of branch pipes: 50mm <br>Applicable temperature: 1~95°C <br>Applicable pressure: 1.5MPa <br>Main Tube diameter: equivalent to DN40 diameter <br>Applicable medium: water vapor <br>Temperature control trip: 3mm <br>Other: Visual flow, Easy to adjust, Seamless steel pipe, Tube thickness of 1.6 mm <br> <br>Item Included: 053270 <br>INTSUPERMAI Floor Heating Water Distributor PEX Radiant Floor Heating Manifold Set Stainless Steel (12-Branch) <br>

• Equipped with two brackets, reserved mounting holes, convenient to install the water distributor to the wall or box.

• Stainless steel surface after drawing and polishing treatment, beautiful and generous, smooth and easy to clean.

• Backwater branches are equipped with independently adjusted temperature control valves, which can control the backwater of branches separately to adjust the temperature.

• The tube body has been degaussed, which does not absorb any impurities, effectively reduces friction and prevents scaling, and prolongs service life.

• Before leaving the factory, each set will be put in water for sealing test to ensure normal and safe use.
